ROS Workspace

Package structure

All ROS 2 packages live in the robot-sim/ directory. Every directory containing a package.xml is a package.

Robot packages

Each robot has two packages, generated by genbot:

<robot>_description — the robot model

• urdf/<robot>.urdf — geometry URDF (positions, links, joints, mesh references)
• urdf/<robot>_control.urdf.xacro — ros2_control hardware interface block (joints, command/state interfaces)
• meshes/ — STL mesh files from OnShape
• Built with ament_cmake — CMakeLists.txt installs URDFs and meshes to the share directory

<robot>_bringup — launch configuration

• launch/<robot>.launch.py — orchestrates the full simulation startup
• config/<robot>.controller.yaml — controller manager config (joints, update rate, controller types)
• config/<robot>.rviz — RViz visualization layout
• Built with ament_cmake

Shared packages

sim_common — shared Python utilities

• launch_utils.py — helper functions for launch files (get_asset() resolves paths in package share directories)
• move_joints.py — ROS 2 node for sending one-shot joint trajectory commands
• joint_gui.py — Tkinter GUI for interactive joint control
• Built with ament_python (setup.py + setup.cfg)
• Registers move_joints and joint_gui as console script entry points

sim_worlds — Gazebo world files

• worlds/empty.world.sdf — default world with physics, lighting, and a ground plane
• gui/gui.config — Gazebo GUI plugin layout
• Built with ament_cmake

Building

The launch_sim.sh script handles building automatically. To build manually:

Inside devcontainer

cd robot-sim
colcon build --packages-up-to arm_bringup arm_description sim_worlds sim_common \
    --cmake-args -DBUILD_TESTING=OFF
source install/setup.bash

--packages-up-to ensures all dependencies are resolved and built in the correct order. The install/setup.bash overlay lets ROS 2 find the built packages.

Build outputs

After building, robot-sim/ contains three generated directories:

Directory	Contents
build/	Intermediate build artifacts
install/	Installed packages (what ROS 2 uses at runtime)
log/	Build logs

All three are gitignored. Run ./scripts/clean_build.sh to delete them.

Adding or modifying packages

When you add or change a package:

1. package.xml — declares the package name, version, description, and dependencies. colcon uses the <depend>, <build_depend>, and <exec_depend> tags to determine build order.

2. CMakeLists.txt (CMake packages) — defines what gets installed to the share directory. Typically installs URDFs, meshes, configs, and launch files.

3. setup.py (Python packages) — lists Python modules and console script entry points.

Tip

If colcon can’t find a new package, make sure package.xml exists and the package name matches the directory name.

System flowchart

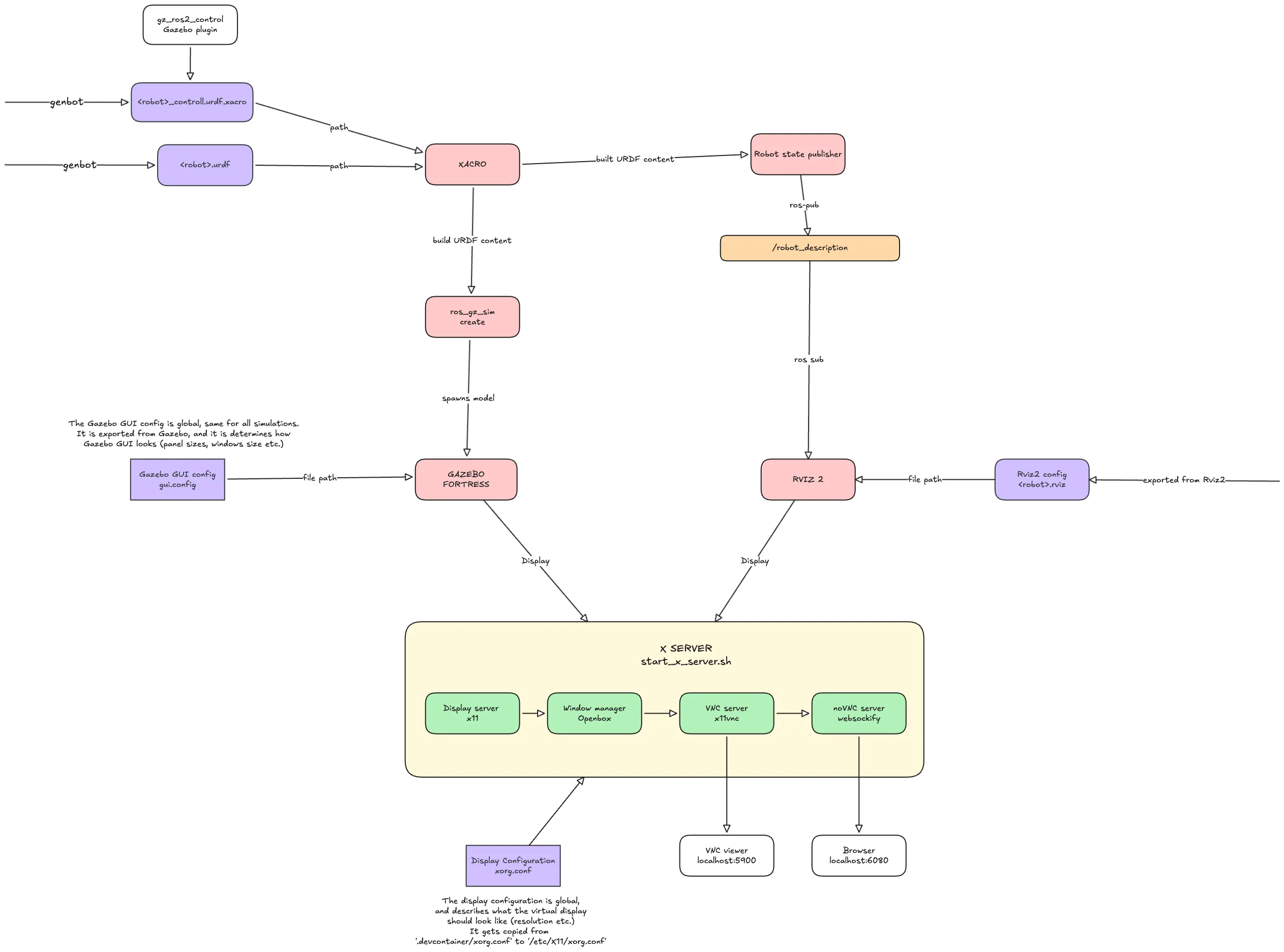

Here is a flowchart showing how the arm simulation works end-to-end:

Troubleshooting

Unexplained build errors: Run ./scripts/clean_build.sh and rebuild. This fixes the majority of mysterious failures.

Package not found at runtime: Make sure you sourced the workspace (source install/setup.bash). Opening a new terminal in VS Code doesn’t automatically source it.

Dependency order issues: Check that all <depend> tags in package.xml are correct. Missing dependencies cause packages to build before their dependencies are ready.
